29er Full suspension XC MTB carbon frame travel 130mm YS112

-Full suspension XC/Trail frameset

-Front & Rear fork travel: 130mm

- High modulus T700 carbon fiber

- 12*148mm boost

-----------------------------------------------------------

Item No.: YS112

Product Orgin: China

Payment: Paypal, Bank Transfer, West Union

Color: UD Matt/ Gloss (Customized Painting Acceptable)

Description

Frame	Full carbon 29er/ 27.5" Full suspension XC/Trail frameset
Bottom Bracket	BSA
Material	Toray T700 carbon fiber
Sizes	XS/S/M/L/XL
Disc front and rear	160mm
Front & Rear fork travel	130mm
Max Tire Size	27.52.8" or 292.3"
If XDR groupset	27.52.5" or 292.3"
Headtube	Top:1-1/8'',down:1-1/2"
Rear Rock size	200*51mm
Rear hanger	148*12mm
Frame Weight	2350±40g(XS)

Description

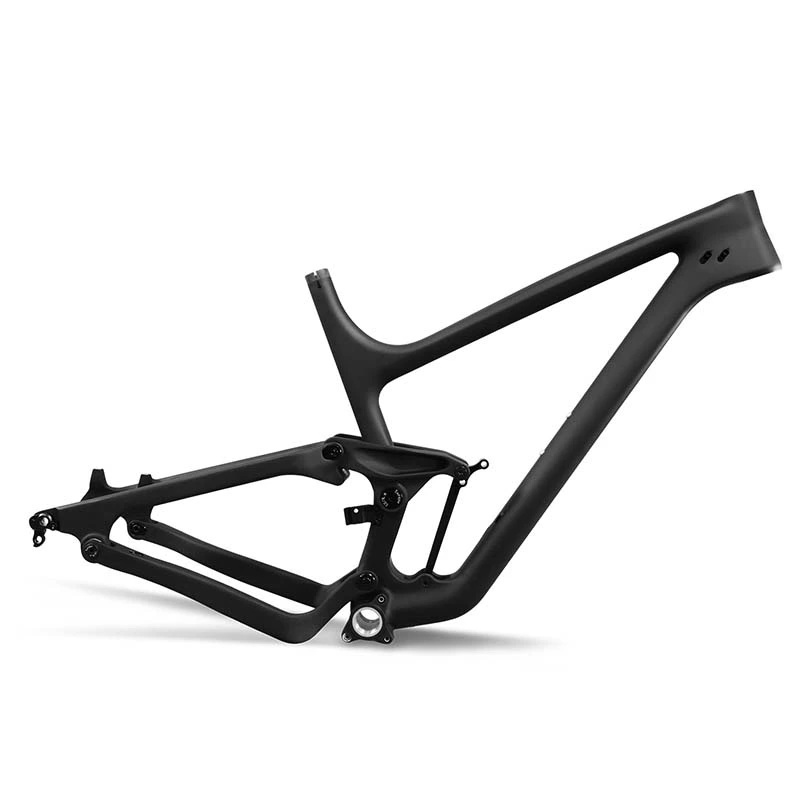

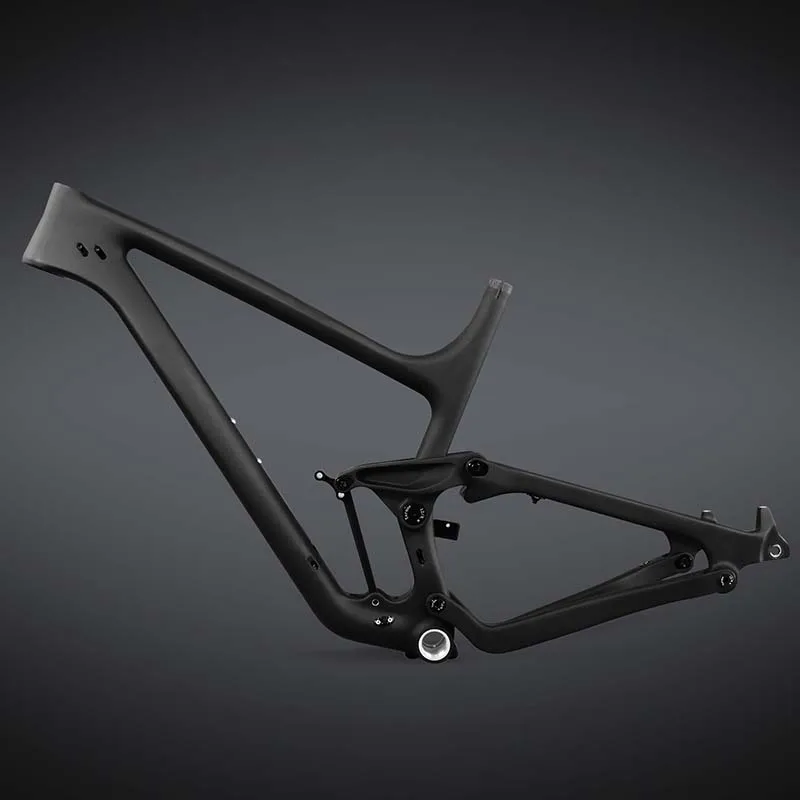

All Carbon Construction

Full carbon frame made from premium Japanese Toray fiber with a tailored materials to create the right balance of frame stiffness,
strength, and impact toughness. Our unique latex coated EPS molding process allows for sharper frame lines and tighter edge radius
control with maximum strength to weight ratio and less wasted material.

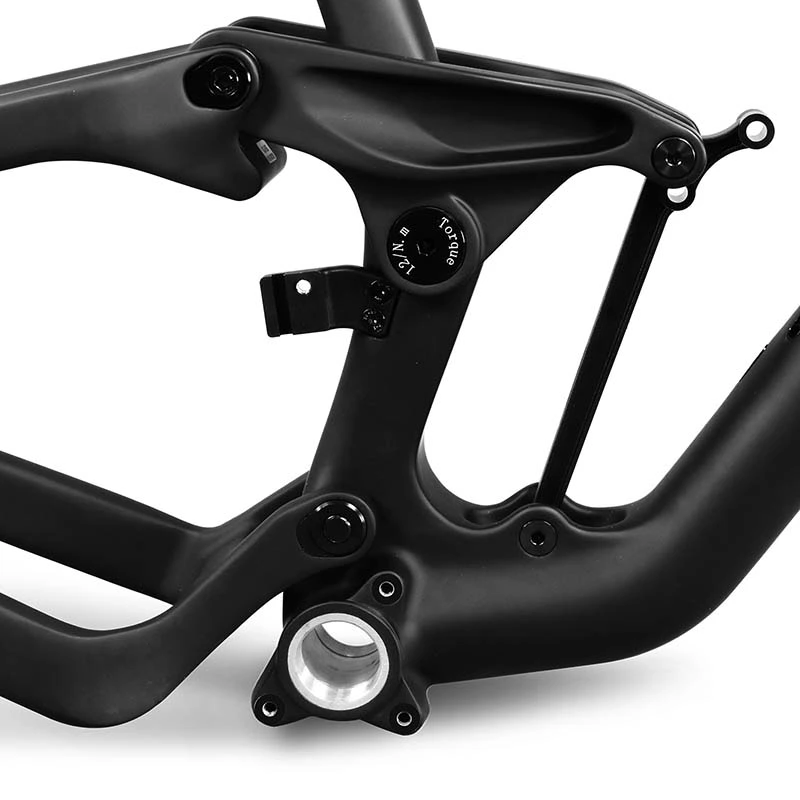

Pivot Technology

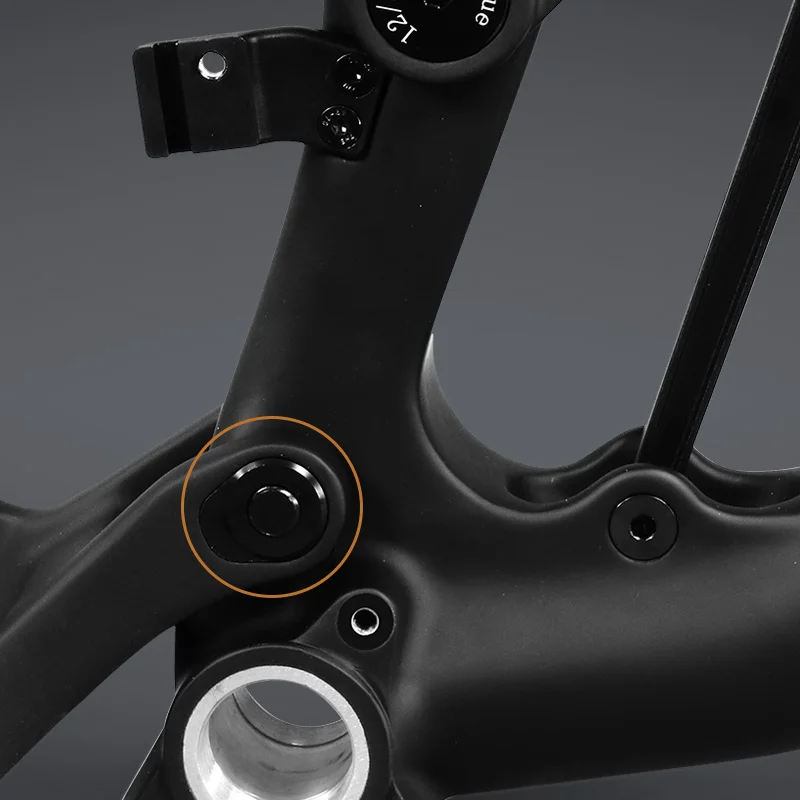

Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.

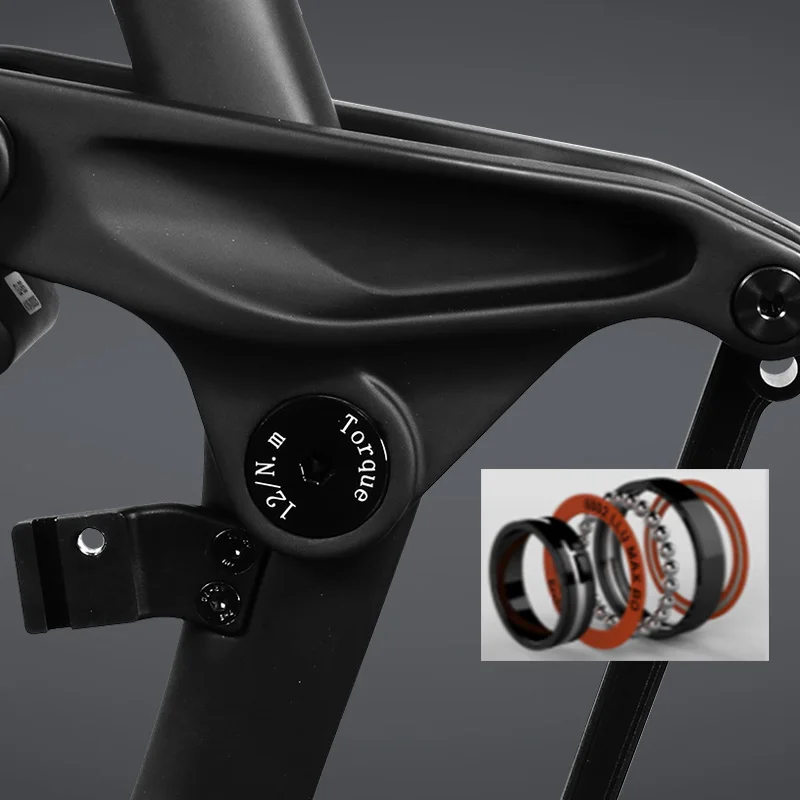

Badass Bearings

We exclusively use Torque suspension pivot specific bearings in standard sizes that are readily available worldwide. Additional c-clips lock the rocker bearings in place under torsional loads.

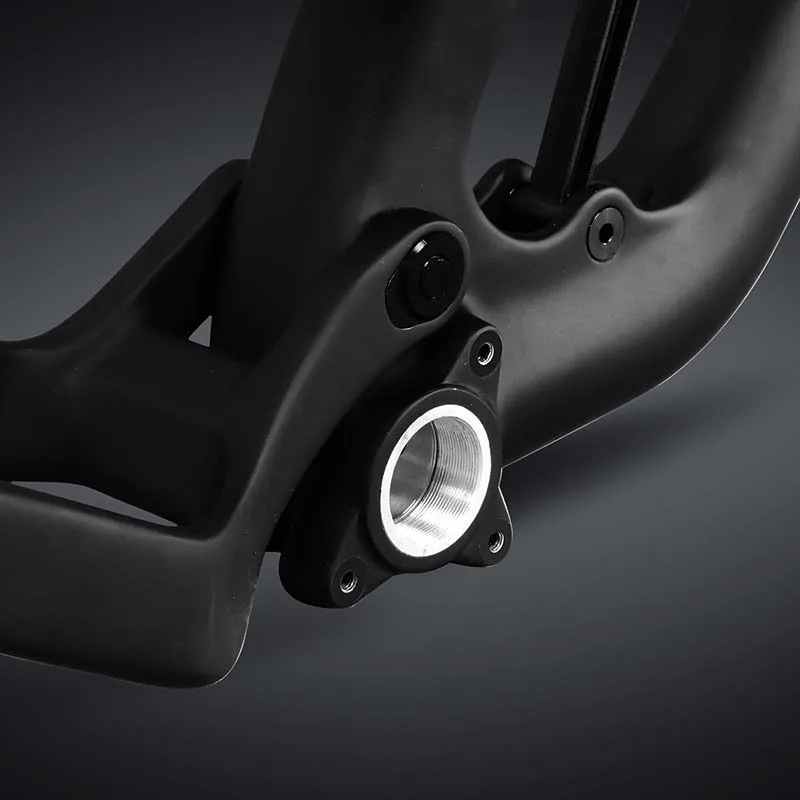

Threaded BB

A standard 73mm threaded bottom bracket shell makes crankset maintenance hassle-free and prevents unwanted press-fit BB related noises.

Water Bottle Compatibility

Built for long days in the saddle, the Spur comes with two sets of water bottle mounts for maximum hydration options.

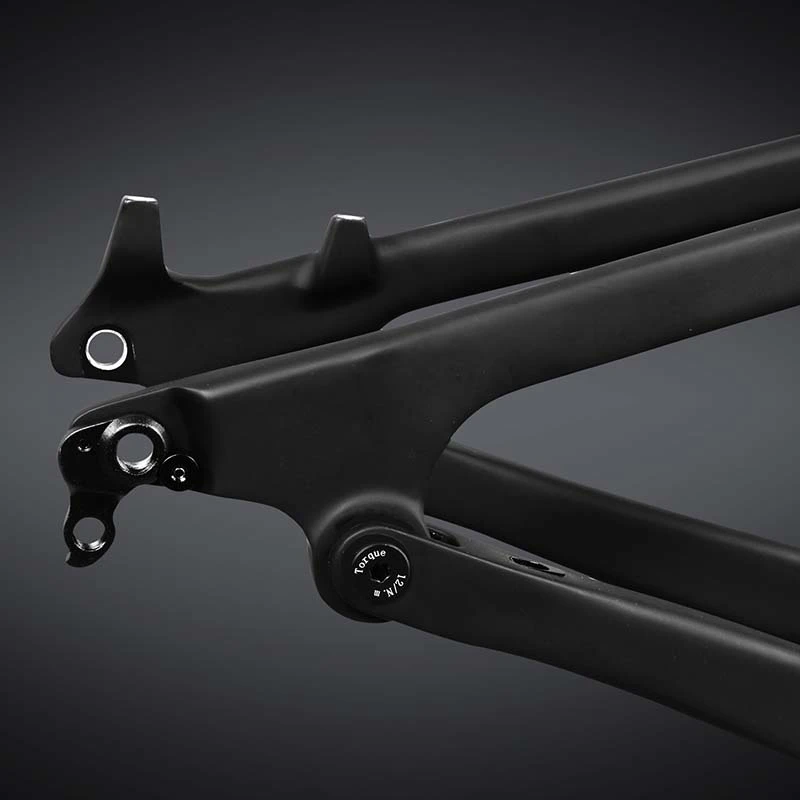

Flex Stay

Our flex stay system utilizes a carefully tuned carbon layup ,with the pivot axles and bearings, to provide comfortable shock absorption without compromising frame durability.

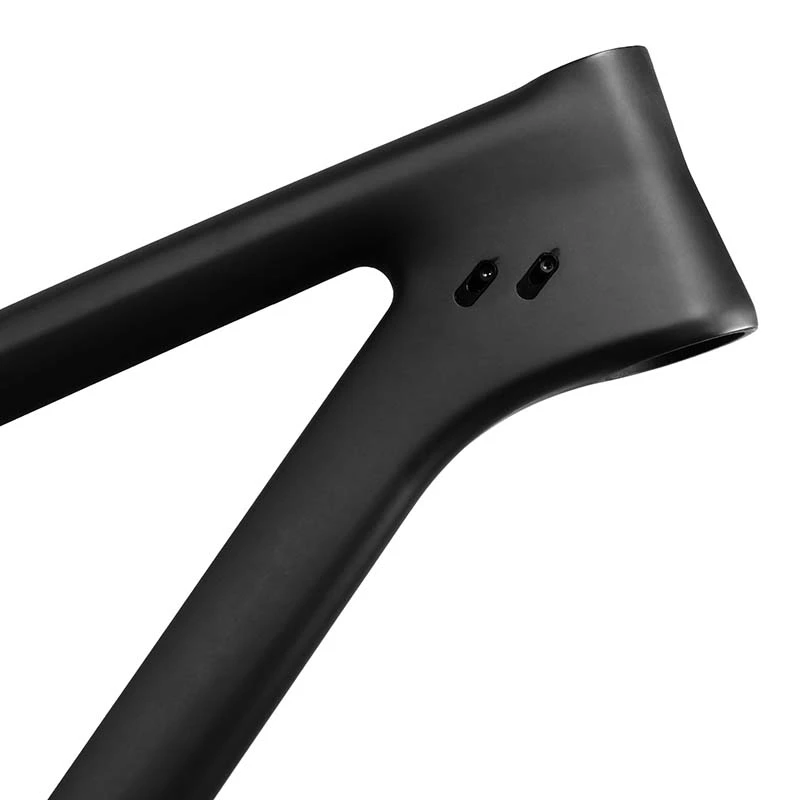

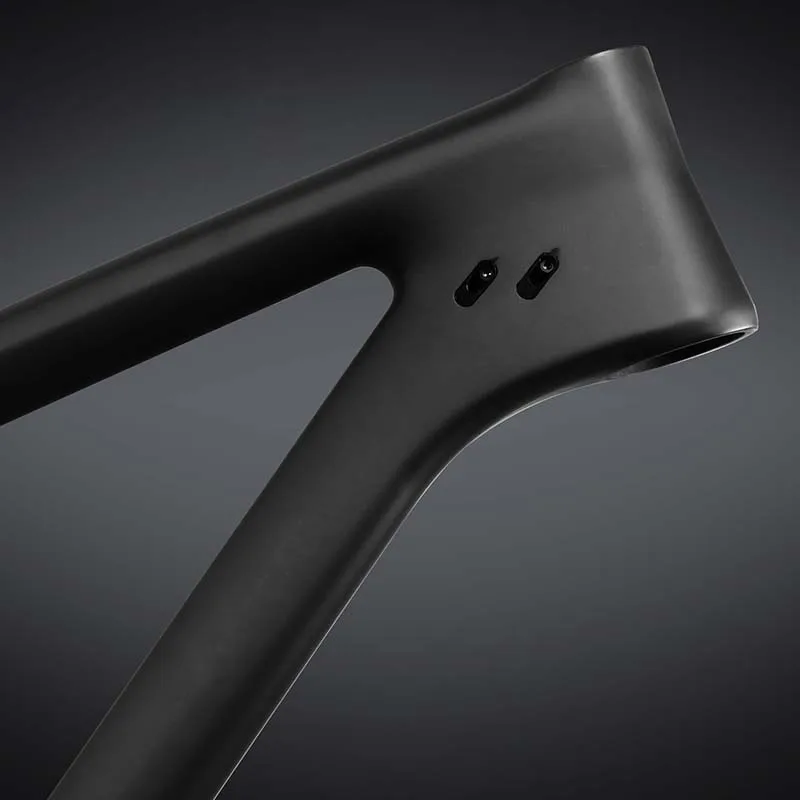

User Friendly Cable Routing

To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.

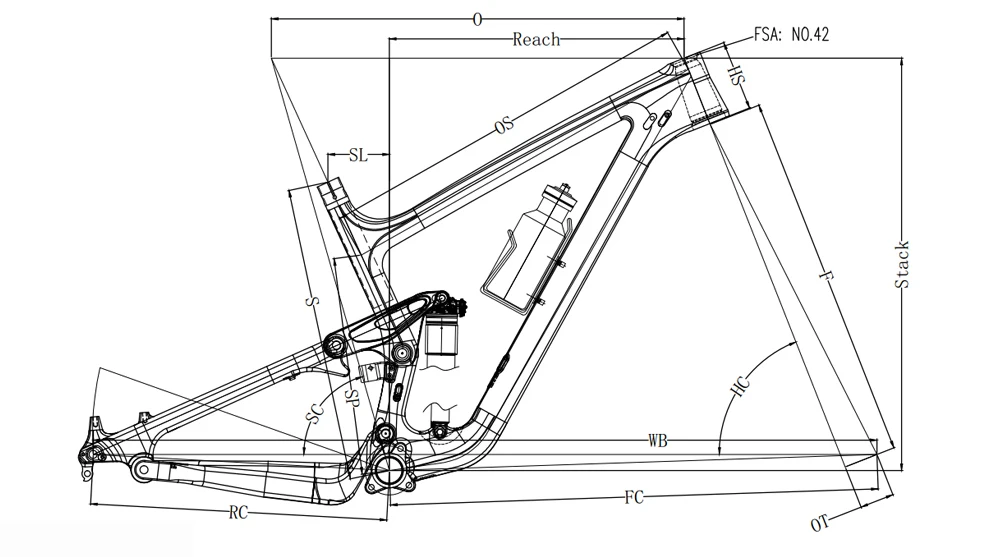

Geometry

SIZE	XS	S	M	L	XL
S	367.6mm	391.8mm	440.5mm	492.3mm	541.4mm
SP	270.2mm	282.6mm	324.5mm	333mm	384.4 mm
SC	74.2°	74.1°	74°	73.9°	73.8°
SL	60.5mm	71.1mm	91.9mm	113.8mm	134.6mm
O	562.1mm	587.6mm	616.4mm	635.6mm	672.6 mm
OS	525mm	542 mm	562mm	578.5mm	611.3mm
HS	95mm	95mm	105mm	115mm	120mm
HC	68.5°	68.5°	68.5°	68.5°	68.5°
F	551mm	551mm	551mm	551mm	551mm
OT	51mm	51mm	51mm	51mm	51mm
WB	1117.3mm	1142.1mm	1170.1	1189.4mm	1226mm
FC	675.3mm	700.1mm	728.7mm	747.4mm	784mm
RC	443mm	443mm	443mm	443mm	443mm
G	24.1mm	24.1mm	24.1mm	24.1mm	24.1mm
Stack	606.7mm	606.7mm	615.8mm	625mm	629.3mm
Reach	390.3mm	415mm	440.1mm	455.2mm	490.2mm
