25mm Width Rim brake Tubeless carbon rims

- 25mm width symmetric rim brake road Tubeless carbon rim.

- Reinforced nipple bed for larger spoke tension.

- Wide U shape design, better aerodynamics and stiffness.

- High quality carbon clincher rim with competitive price.

--------------------------------------------------------------

Item No.:RV25 Rims

Product Orgin:China

Payment: Paypal, Bank Transfer

Color:UD/3K(Customized Painting Acceptable)

Description

700C*25mm Tubeless Road Bike Rim

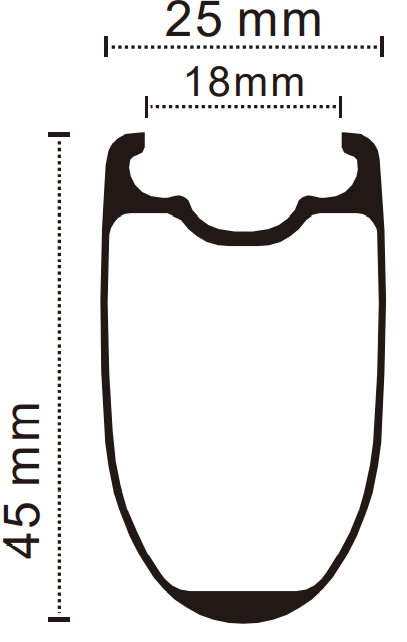

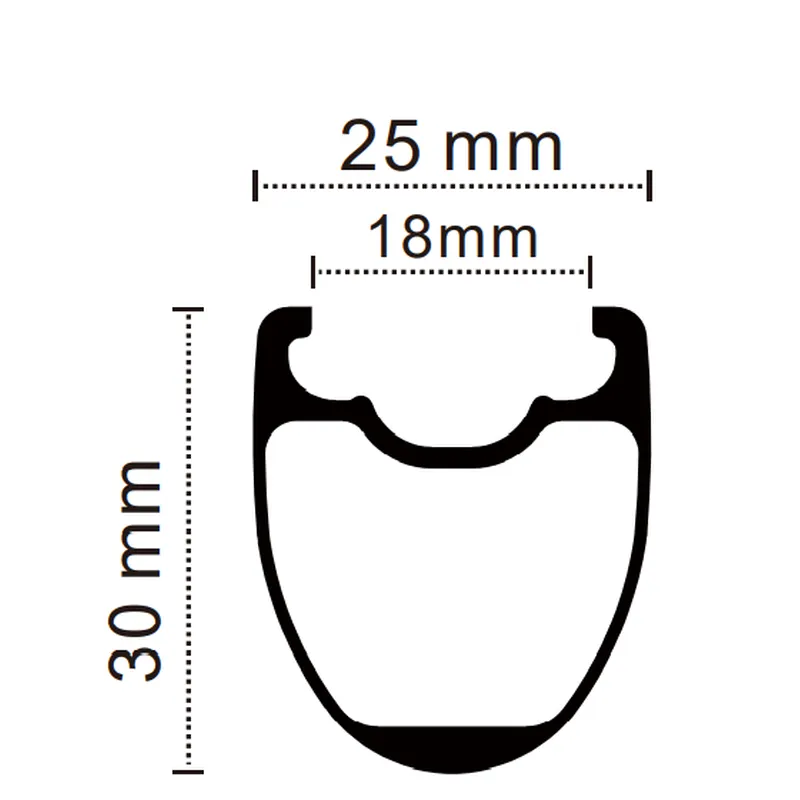

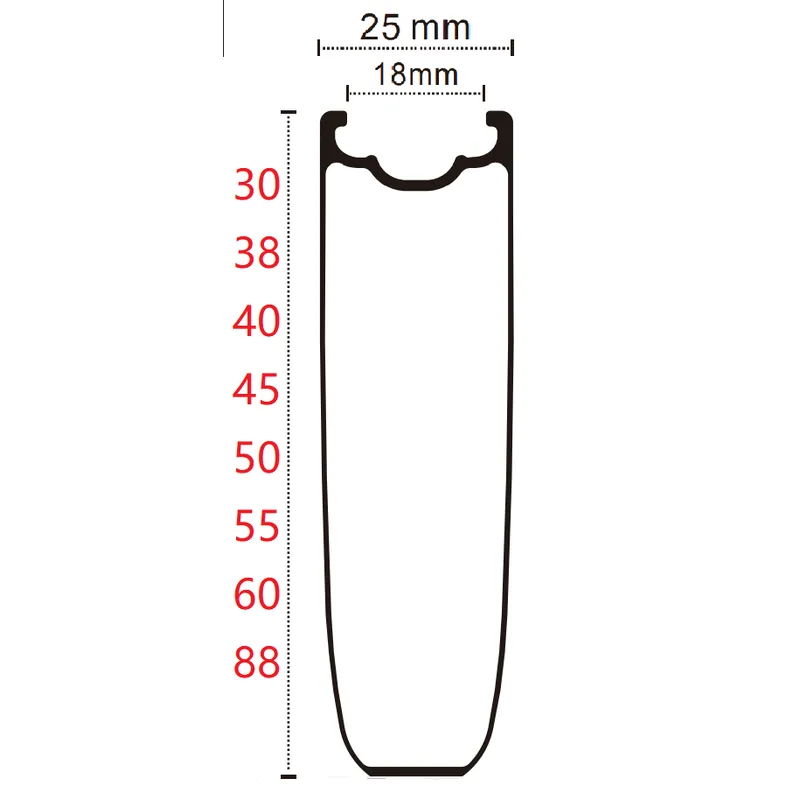

Sectional view	Model	Type	Profile (D*W)	ERD* (mm)	Weight +-15g	Max weight
Sectional view	Model	Type	Profile (D*W)	ERD* (mm)	Weight +-15g	Max weight
	RV25-30	Tubeless	25*30mm	580mm	450g	120kgs
	RV25-30-SL	Tubeless	25*30mm	580mm	430g	120kgs
	RV25-38	Tubeless	25*38mm	564mm	480g	130kgs
	RV25-40	Tubeless	25*40mm	560mm	480g	130kgs
	RV25-40-SL	Tubeless	25*40mm	560mm	450g	130kgs
	RV25-45	Tubeless	25*45mm	550mm	510g	130kgs
	RV25-45-SL	Tubeless	25*45mm	550mm	470g	130kgs
	RV25-50	Tubeless	25*50mm	540mm	530g	130kgs
	RV25-50	Tubeless	25*50mm	540mm	530g	130kgs
	RV25-55	Tubeless	25*55mm	530mm	550g	130kgs
	RV25-60	Tubeless	25*60mm	520mm	590g	130kgs
	RV25-88	Tubeless	25*88mm	464mm	700g	130kgs
